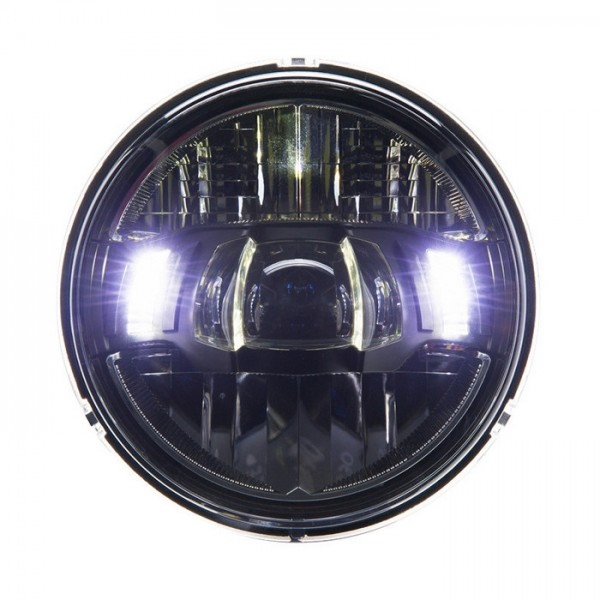

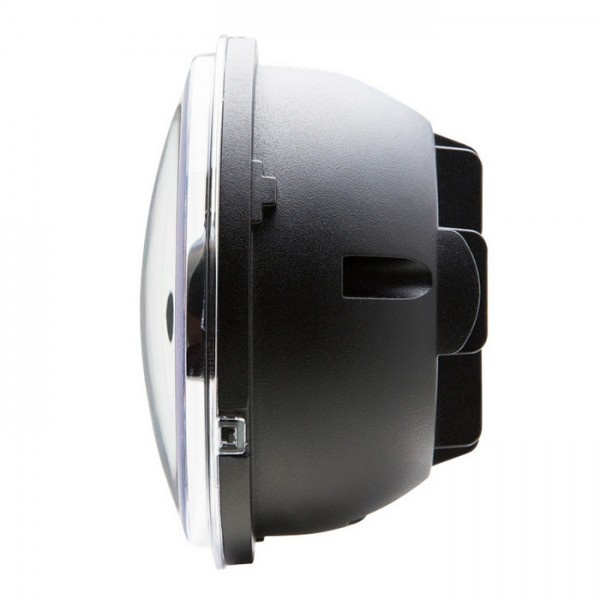

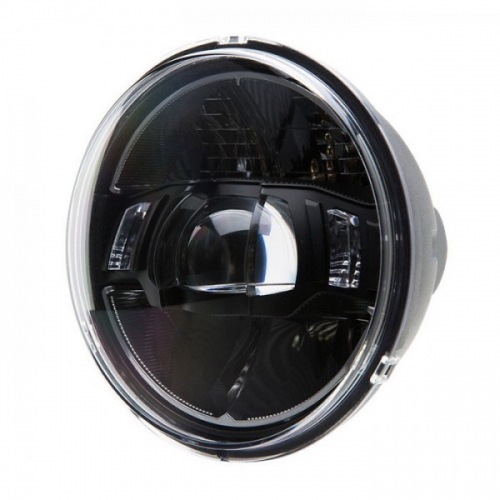

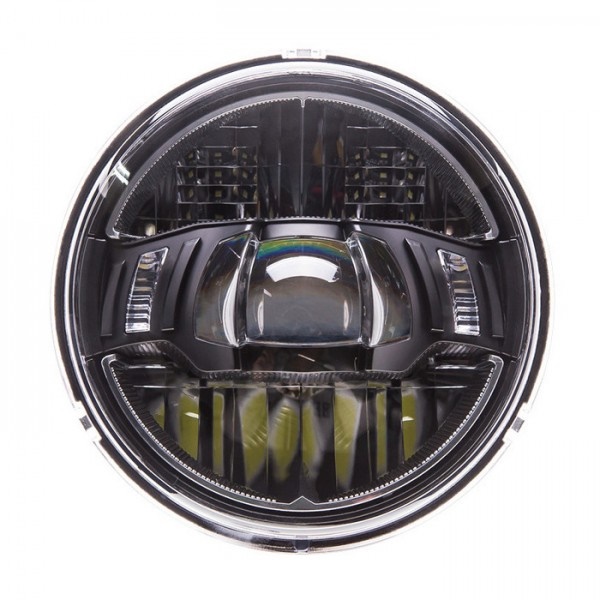

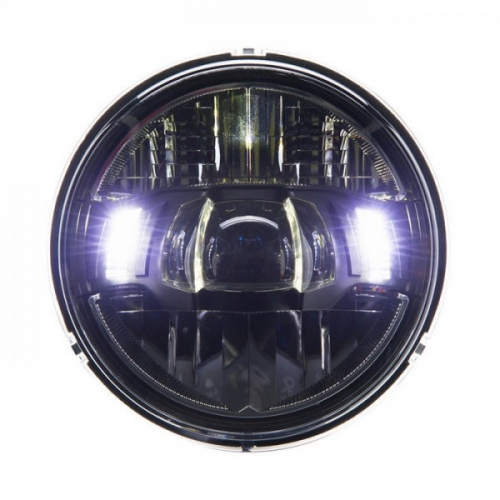

LED-Scheinwerfereinsatz , AREA , 5-3/4" , schwar , Ø=143mm , Klarglas ,E-geprüft

LED-Scheinwerfereinsatz AREA 5-3/4"

• 12V/24V DC
• Low beam: 3pcs x 2chip LEDs
• High beam: 4pcs x 2chip LEDs
• Front position light: 2pcs LEDs
• All Nichia automotive grade LEDs
• PC lens with hard coating

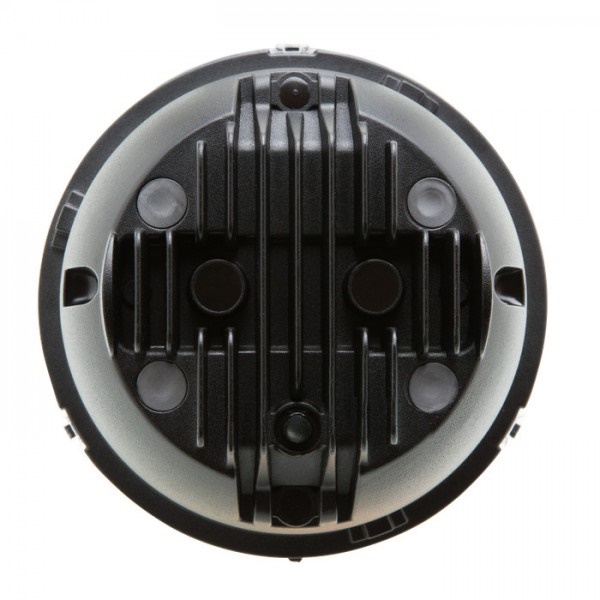

• Die cast aluminum heat sink and housing
• Electromagnetic compliance
• ECE compliant
• Rating: 12V/24V DC Multi-Voltage
• Light Source:
• Low beam- 3pcs x 8.5W Nichia Automotive grade LEDs (1950 lumens)
• High beam- 4pcs x 8.5W Nichia Automotive grade LEDs (2600 lumens)
• Front position light: 2pcs x 1W LEDs (200 lumens)
• Power:
• LOW - 1.88A / 22.56W @12V
• HIGH- 2.59A / 31.08W @12V
• POSITION- 0.19A / 2.28W @12V
• Vibration: 7G
• Corrosion Resistance: 240 hrs
• Ingress: IP67
• Hard coated polycarbonate lens
• PMMA inner lens
• Die cast aluminum housing with E-coat and powder coating
• Electromagnetic compliance
• Surge protected
• Reverse voltage protection
• DOT/ECE R112 Compliant
